Here are the Modifications for the AF Unit on the TS-950SDX.

But First, Ya gotta read the 'Stuff'....


Disclaimer Notice
These modifications should be accomplished by qualified personnel who
have had enough knowledge and practice in SMD soldering techniques, at the owners risk.

WARNING - YOU DO THE MODIFICATIONS AT YOUR OWN RISK!

We are not responsible for any personal injury incurred while performing these mods.
We are not responsible for any damage to, or illegal operations of the equipment as a result of the mods,
mod errors, or possible mod misinformation via these pages.

The Radio modifications shown here are provided for properly licensed operators only.
The user is solely responsible for making sure that any modifications made to
the radio unit must meet all Federal and State Regulations for the Country of use.
Liability of damages to any equipment is the sole responsibility of the user.
Downloading , viewing, or using any information provided on these pages automatically accepts the user to the terms of this agreement.
Modifications are provided for information purposes only.
Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.

Copyright Notice
All contents on this site, including text, graphics, and MP3 audio recordings are considered property of
Voodoo-LABS and are protected by copyright law and may not be reproduced or
distributed in any way or form, without express written consent or permission by Voodoo-LABS.
Failure to comply with copyright law may result in legal action.


- Mod Notes -

They're a few other things We would like to say.

Difficulty -
First, these mods aren't all that easy if you've never had any SMD (Surface Mount Device) experience.
You run the risk of lifting circuit traces, overheating components, damaging ESD sensitive devices, and such.
Kenwood epoxies there chip components to the circuit boards with glue.
This makes it that much more difficult to desolder and remove these components without damaging the surrounding items.
It takes time, equipment, and patience to do it correctly.

Changing Tantalums and Ceramic Chips with Electrolytics -
What we did was replace the Tantalums (and some other chip caps) with High Grade Panasonic Low ESR Electrolytic Capacitors.
The problem with that is, since the Tantalums are on the bottom of the boards, there's no room for the electrolytics there.

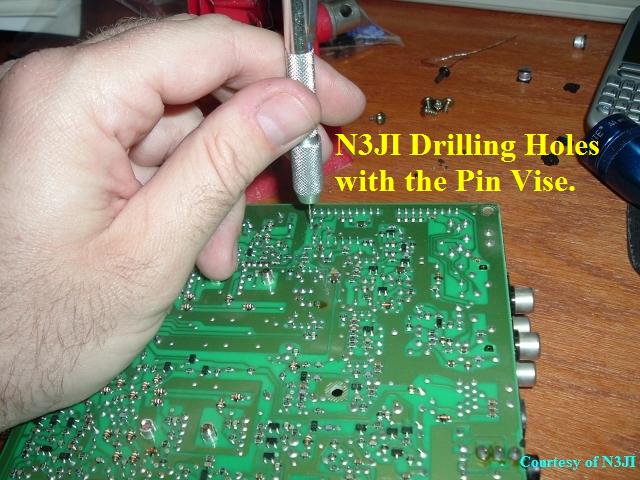

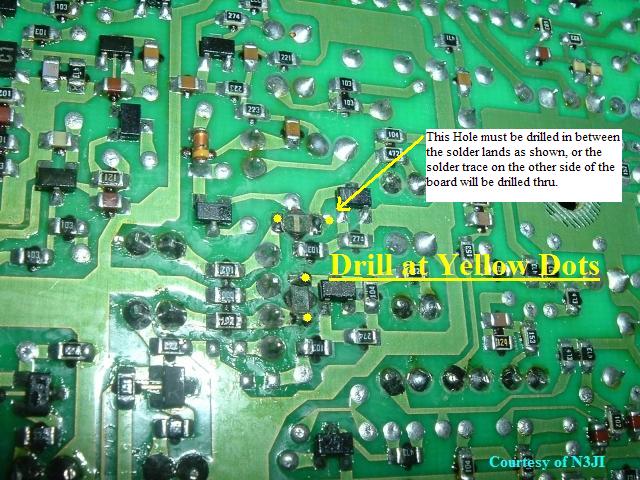

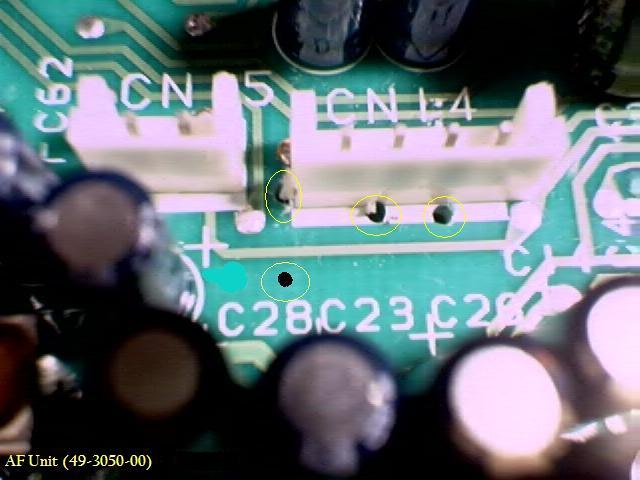

The solution is to carefully drill holes thru the PC board to allow the leads to go thru from the other side.
This makes the mods more time consuming and dangerous.
You have to be aware of the circuit traces on the other side of the board before you drill.
Sometimes you will be drilling thru the Ground Plane on the opposite side,
this requires counter boring to keep the penetrating leads from touching the ground plane.

Op Amps -
We're firm believers in the Audio differences between Op Amps.
The original Op Amps were upgraded with newer Analog Digital units that have a greater Bandwidth, Slew Rate, and SOUND!!
This is something that is NOT necessary to do in order to get the increased Receiver Bandwidth,
but it does affect the overall depth, resonance, and ambiance of the Audio.




OK,
Now were gettin to the meat of the subject.
It's time to inflict Maximum Carnage with Extreme Prejudice.
Bring out the Torture Devices!!!




AF Unit (X49-3050-00)

Circuit Description:

AF Pre-Amp Circuit:
The TS-950sdx uses a separate AF circuit for each receiver (Main and Sub-Receiver) to amplify the Audio Frequencies.
The circuitry for each AF amplifier circuit consists of 3ea pre-amps and and a power amp.
We'll go thru it for a general understanding.

The AF unit receives the low level Audio from the demodulation circuits for the start of AF Amplification.
These inputs come from the Digital DSP unit, the AM detector, the FM demodulator, and the Sub-Receiver.

We'll Follow the Main AF Circuit first.
The low level audio is input to the Main AF circuit from the Digital DSP unit for SSB, the AM Detector for AM,
and the FM demodulator for FM of course.
All of these inputs are diode switched by IC's according to Mode Selection on the front of the rig.

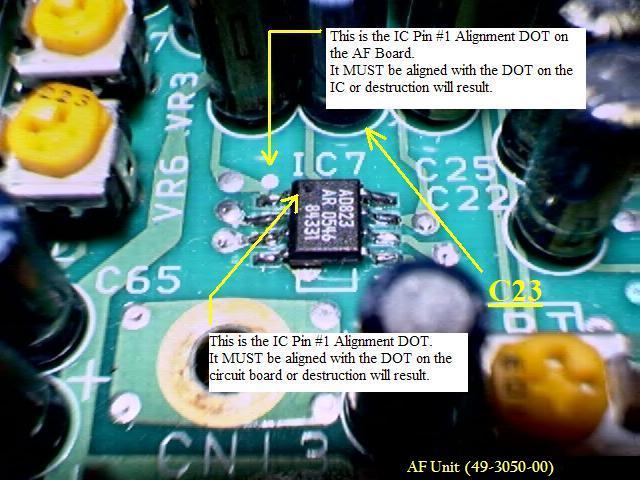

The low level audio is routed to the first Pre-Amp/Low Pass Filter, IC7.
This is a NJM4558M Op Amp configured as an inverting amplifier with a gain of about 18db.
It is using the feedback loop as a Low Pass Filter by paralleling a 100pf chip capacitor (C301) with R37.
The cut off frequency is around 13.2Kc, so this is acceptable with no changes.
The 1uF electrolytic coupling capacitor (C22), rolls off the low frequencies too much.
It will have to be increased in value to 4.7uF.

The amplified AF signal now goes thru the 1uF SMD coupling capacitor (C27),
this will have to be changed to 10uF to pass the lows adequately.

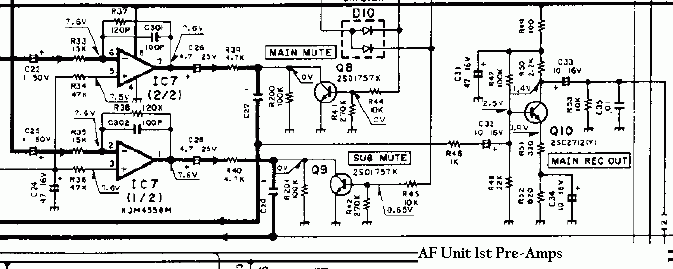

AF Unit 1st Pre-Amp.

The AF signal can now take 2 paths.

Path 1 leads to Q10, which is a Bipolar Transistor amp in a Common Emitter configuration.
This is for amplifying the AF signal for output to the Acc2 Jack.
There is an electrolytic coupling cap that need to be changed here.
C33 is a 10uF cap that needs to be changed to a 22uF.
Q10 also has a 10uF emitter bypass capacitor (C34), which will need to be increased to 47uF.
Both of these caps limit the low frequency response.

Path 2 continues off the AF Unit to the AF Gain Control and then back to the AF Unit.
This was were we found another Ground loop problem which was causing Hum in the Sub receiver Audio AF.

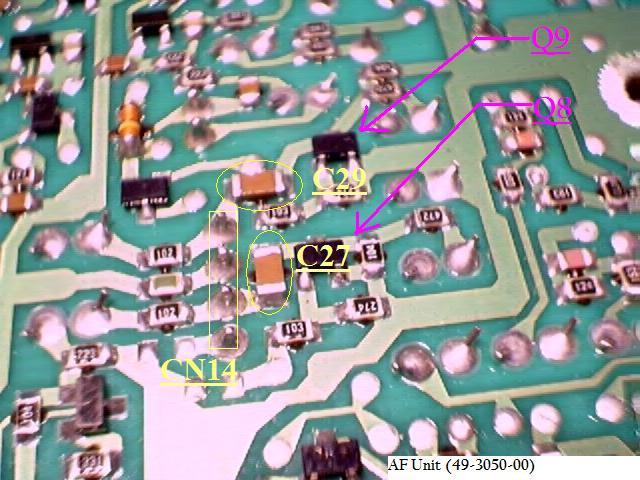

The ground at terminal #3 of CN14 needs to be lifted.

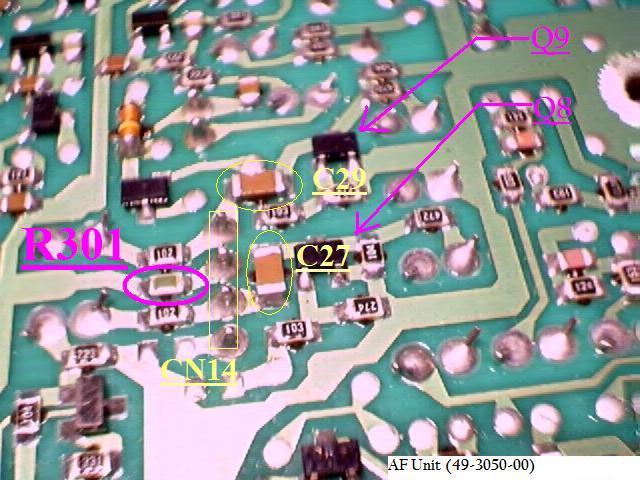

This is accomplished by removing the 0 ohm resister/jumper, (R301).

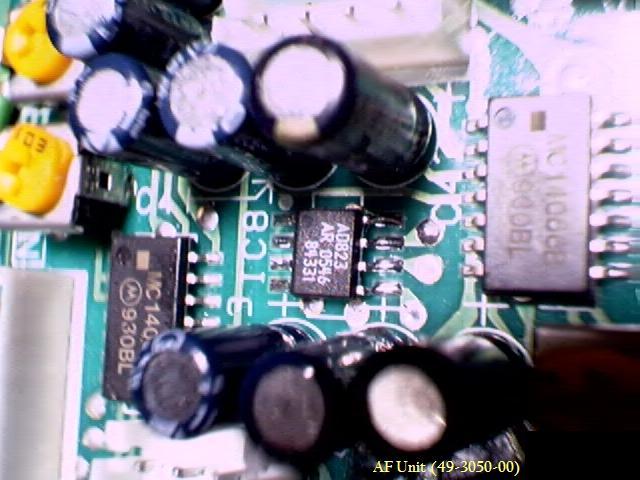

The signal then goes to the 2nd Pre-Amp/Low Pass Filter, IC8.
This is a NJM4558M Op Amp configured as an inverting amplifier with a gain of about 31db.
It is using the feedback loop as a Low Pass Filter by paralleling a 150pF chip capacitor (C188) with R69.
The cut off frequency is around 3.3Kc
This is unacceptable and will have to be modded.
Since the TX Monitor Improvement Mod requires this Op Amp to be at a lower gain,

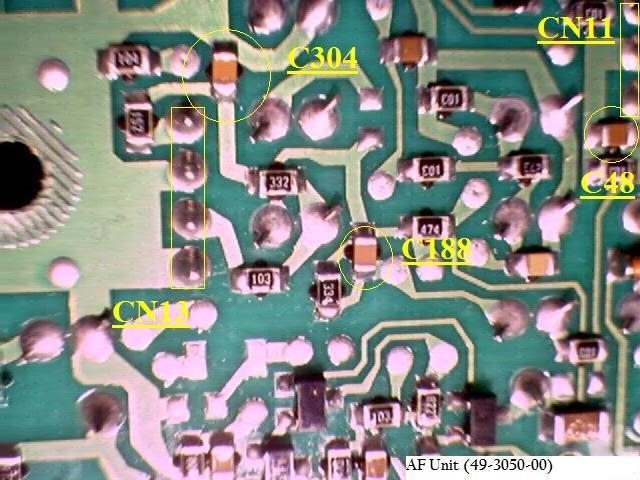

We will change R69 to a 220K ohm resistor, and C188 to a 39pf capacitor.
This will up the cut off frequency to around 18Kc,
while changing the gain structure of the amplifier to a lower value for the TX Monitor Mod.
There are 2ea coupling caps for this pre-amp which will have to be changed, due to their low frequency roll off.
C42 which is a .22uF that needs to be changed to 4.7uF, and C46 a 1uF that needs to be changed to a 10uF.

The signal then goes by a .0047mf chip capacitor (C48),
that is shunted to ground which is rolling the high Frequencies off at around 3Kc.
This cap will be changed to a .001uF cap to increase the cutoff frequency to around 15.9Kc.
Then the Amplified AF Signal leaves the AF Unit and goes to the Control Unit.

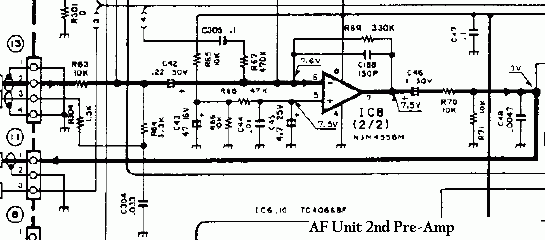

AF Unit 2nd Pre-Amp.

The Sub Receiver circuit is almost a duplicate to the Main Receiver circuitry.
One difference is that the 2nd pre-amp is on the Control Unit instead of the AF Unit, but they are essentially the same.

We have revised these mods on 8-16-09 and no longer modify the Sub Receiver circuitry after IC7 (1/2).
Reason being is that since there is no way to widen the 2.1Kc Bandwidth of the Sub-Receiver,
there is no point in modifying the Audio AF chain after the pickoff for the ACC2 Jack Amplifier.
The only thing we are concerned with now on the Sub-Receiver are the circuits for the TX Monitor.


Monitor Circuit:
The Monitor circuit audio is tapped from the Sub-Receiver low level AF Input, and goes thru some diode switching for TX/RX.
It then leaves the AF Unit to goto the Monitor Gain Control and returns back to the AF Unit.
The Monitor signal then goes thru a RC Low Pass Filter made up of R304, R64 and C304. The cutoff frequency is about 3.2Kc.

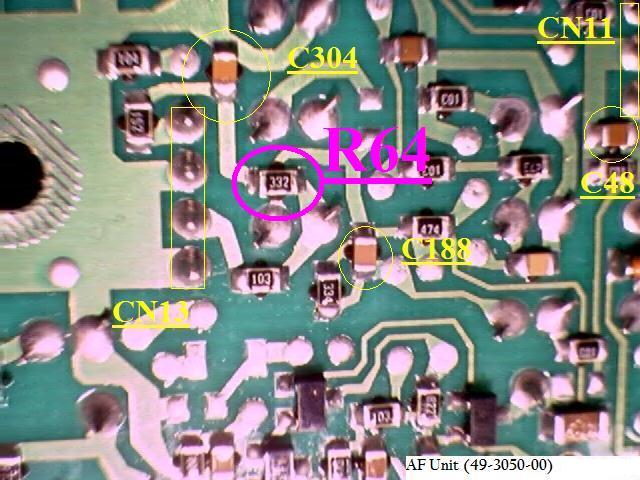

Due to the increased impedance in the circuit by increasing R64 to a 27K (next paragraph),

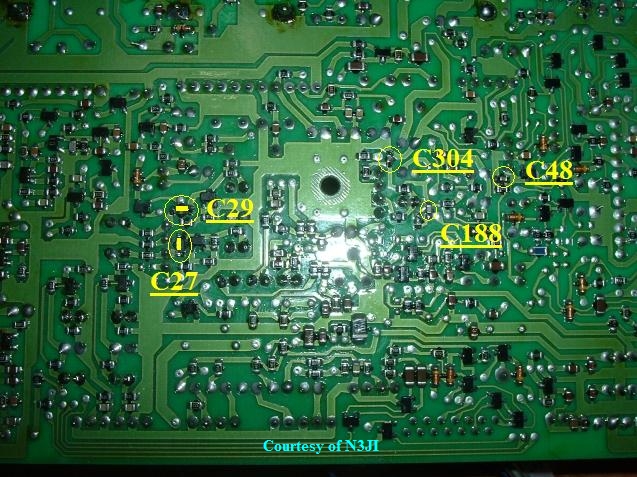

We will be changing C304 from a .033uF to a 390pF to increase the cut off frequency to around 15Kc.
This signal is then injected into the Main AF circuit thru a 3.3K resistor (R64) in front of IC8, the 2nd Pre-Amp.

We've noticed a small low level 60cps hum in this circuit.
This is a combined result of the monitor circuit being injected at a high input level,
and the 2nd Main AF pre-amp operating at a fairly high gain.
We found the solution to be to attenuate the Monitor input circuit sum what by changing R64 from a 3.3K resistor to a 27K.
This made the monitor level perfect on our rig with the gain control at about 11:00.


Attention:

We now have a TX Monitor Improvement Mod that takes care of all Monitor anaomolies.
Once these modifications are accomplished, please see TX Monitor S/N Ratio Improvement Mod.



Gotta have PARTS!!!

AF Unit (X49-3050-00) Mod Parts
Part Nomenclature:
DigiKey - Part Numbers - Panasonic
4.7uF = Need 4ea
Panasonic FC Series Electrolytic Cap
P10315-ND ---- EEU-FC1H4R7
10uF = Need 9ea
Panasonic FC Series Electrolytic Cap
P10316-ND ---- EEU-FC1H100L
22uF = Need 2ea
Panasonic FC Series Electrolytic Cap
P10318-ND ---- EEU-FC1H220
47uF = Need 8ea
Panasonic FC Series Electrolytic Cap
P10321-ND ---- EEU-FC1H470
100uF = Need 4ea
Panasonic FC Series Electrolytic Cap
P10269-ND ---- EEU-FC1E101S
.001uF = Need 1ea
805 SMD Chip Capacitor
PCC102CGCT-ND ---- ECJ-2VC1H102J
39pF = Need 1ea
805 SMD Chip Capacitor
PCC390CGCT-ND ---- ECJ-2VC1H390J
390pF = Need 1ea
805 SMD Chip Capacitor
478-1323-1-ND ---- 08055A391JAT2A
27K ohm = Need 1ea
805 SMD Chip Resistor
RR12P27.0KDCT-ND ---- RR1220P-273-D
220K ohm = Need 1ea
805 SMD Chip Resistor
P220KACT-ND ---- ERJ-6GEYJ224V






WOW, which board is it?

Yer gunna have to get to the boards and remove them from the radio in order to do these modifications.
The AF unit is located on the bottom of the radio.
To access it, Very carefully turn the TS-950SDX upside-down. The DSP Unit (normally on the bottom) will be on the top now.
Squeeze the DSP Cable connectors and carefully jiggle them while pulling to disconnect them from the back of the rig.
Remove the 14ea countersunk screws from the bottom cover, then remove it.
This will expose the inside of the rig. You will see 4ea circuit boards side by side.
With the front of the rig facing you, the AF Unit is the circuit board on the left, closest to you. See Pic.

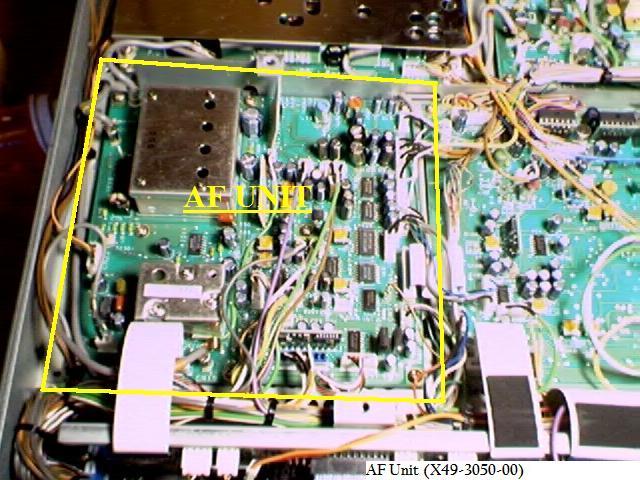

AF Unit Location

AF Unit Removal:
This AF Board needs to be removed.
We found it's best to remove the Cable Connectors and Ribbon cables first, before the screws are removed.
It might be helpful to take a picture of it, or to label the connectors to aid in reinstallation.
To remove the Cable Connectors, it takes a gentle but firm touch.
Grab the wires next to the connector and lightly pull on it while gently rocking the connector back and forth.
Do this while simultaneously holding the printed circuit board down.
Be very careful not to get to rough with them. You don't want to pull or push too hard, this stuff is fragile.
The Ribbon cable connectors have a quick release on them.
There's a ledge on the top of the connector, gently lift up on the ledge and the top will pop up releasing the ribbon cable.
Remove the 8ea screws holding the circuit board in the chassis.
Gently wiggle the board out from under the wire bundles and structure.



AF Unit MODification

Now that the AF board is out and on the bench, ya got all your parts, ya ready to VIOLATE the SDX!
This board is fairly easy to mod.
Most of the components that have to be changed are Electrolytic caps.


Soldering TIPS:

They're a few tricks to the art of soldering that we'de like to share with you.

Tip #1:
There's a conformal coating on the surface of the PC Board to keep moisture and such from getting to the components and solder pads.
This must be removed before heat is applied.
If it isn't, then you run the risk of it flowing in with the solder and contaminating an otherwise good solder joint.
They're expensive chemicals made just for this application, But we've been using Acetone on a Q-Tip for years with no adverse consequences.
It also works great for cleaning the Flux up after the soldering is finished.

Tip #2:
Un-Soldering can be a real pain in the butt.
They're many special devices just for this.
The thing we use the most of is Fluxed Solder Braid.
This stuff is worth Gold, especially when working with SMD stuff.
We usually fold it in a "V" shape and place it on one side of the SMD solder pad.
Then the soldering iron tip is placed in the "V" and pushed against the solder joint.
Presto...the solder is gone. Then the other side is done.
The SMD will still be stuck there because it is Epoxy Glued in place.
Most of the time when unsoldering the other side of the SMD, while its still hot, you can "flip" it up with the soldering iron tip.
You have to be sure all the solder is gone, cause if it aighnt, you'll lift the solder pad.
One friend of ours says he just takes nippers and crushes the center of the old SMD component while
its still soldered on the board, then unsolders the ends.

Solder Braid also works great on the Plated Thru holes in the circuit board. Like were the Electrolytic's are mounted.
Take a small bit of solder and "reflow" the old solder joint.
Then make the "V" with the braid, and apply the soldering iron tip. It will suck all the solder out of the hole.
Most of the time...;)

Tip #3:
For soldering we use an ultra fine tip and a thin solder.
This allows us to get in some very congested areas with the minimum of heat and solder to get the job done.
The size of the solder we use is .025" diameter flux core.


Electrolytic Caps:

Here at the Voodoo-LABS, we change ALL the coupling capacitors out to the Panasonic FC series.
The board is marked with both the Capacitor Numbers and the Polarity.
It's really just a matter of unsoldering and removing the old capacitors, and installing the new ones.
The sizes are close to the same so they should fit with no problems.
No surprises here.
Be sure to install the Capacitors with the correct Polarity!!

Change these Electrolytic Caps:
C11 - 47uF - Same Value 47uf
C13 - 47uF - Same Value 47uf
C14 - 1uF - Change this to a 10uf
C20 - 1uf - Change this to a 10uF
C21 - 47uf - Same Value 47uf
C22 - 1uF - Change this to a 4.7uF
C23 - 47uf - Change this to a 100uF
C24 - 47uF - Same Value 47uf
C25 - 1uf - Change this to a 4.7uf
C26 - 4.7uF - Change this to a 10uF
C28 - 4.7uF - Change this to a 10uF
C31 - 47uF - Change this to a 100uF
C32 - 10uf - Same Value 10uF
C33 - 10uf - Change this to a 22uF
C34 - 10uf - Change this to a 47uF
C36 - 10uF - Same Value 10uF
C37 - 47uF - Change this to a 100uF
C38 - 10uF - Change this to a 22uF
C39 - 10uF - Change this to a 47uF
C41 - 1uF - Change this to a 4.7uF
C42 - .22uf - Change this to a 4.7uF
C43 - 47uF - Change this to a 100uF
C45 - 4.7uF - Change this to a 47uF
C46 - 1uF - Change this to a 10uF



SMD Chip Caps:

These are a little more difficult to identify. The board isn't marked for these items.
We have added some pics to help you find them.
Removal and Installation is also a little tricky, especially for beginners.
C27 & C29 are of a special installation and will be described in-depth below.
The other 3 have the same case sizes, so they should fit with no problems.

Trying to identify C304 is rather difficult because the Service Manual X-ray view is of a earlier board Revision and doesn't show it.
See the pictures below for the locations.

Change these SMD Chip Caps:
C48 - .0047uF - Change this to a .001uf
C188 - 150pF - Change this to a 39pF
C304 - .033uf - Change this to a 390pf

AF Chip Cap Locations
Here is a Pic of the bottom of the AF Unit. The Caps to be changed are marked in yellow.


AF Unit, C304, C188 & C48
Here is a close up of C304, C188, and C48.
Notice the reference for CN13 and CN11 to help locate the SMD's.


Changing SMD Chip Caps C27 & C29:

Change both of these with 10uF electrolytic Capacitors.

Be sure to install the Capacitors with the correct Polarity!!
The "+" terminals must be installed towards Q8 & Q9

C27 - 1uF - Change this to a 10uF Electrolytic
C29 - 1uF - Change this to a 10uF Electrolytic

AF Unit, C27 & C29
Here is a close-up of C27 and C29.
Notice the reference of CN14 to help with the location.


AF Unit, Drilling Locations for the Holes.
This Pic shows the were to drill the Holes thru the Board. They are marked in Yellow.
Notice that three of the holes are drilled thru the solder pads, but the Top Right hand hole in the Pic is between the solder pads.
This was done to prevent drilling thru the solder trace on the other side of the board.
It is best to use a Pin Vise with a very small Drill bit. We used a .027" bit.


AF Chip Cap Locations
Here's a pic showing the other side of the AF board were the holes come thru.


AF Chip Cap Locations

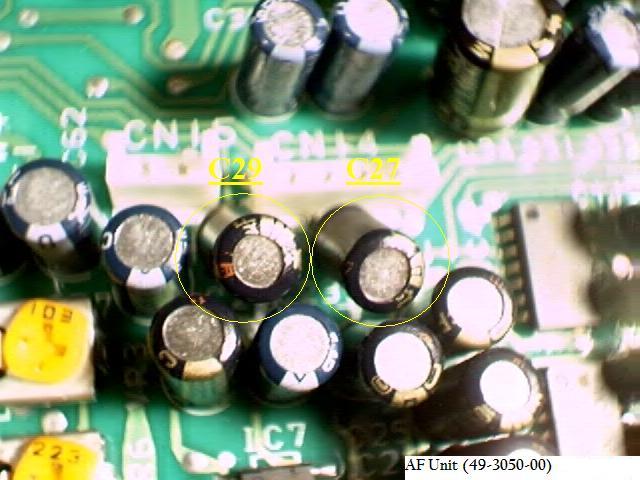

Here the new Electrolytics are installed.
The reason they are canted instead of standing up straight was to keep the leads as short as possible.


AF Chip Cap Locations
Here is N3JI demonstrating the use of the Pin Vise.


SMD Chip Resistors:

The board isn't marked for these items either.
So We've added some pics to help you find them.
See the pictures below for the locations.

Change these SMD Chip Resistors:
R64 - 3.3K ohm - Change this to a 27K ohm
R301 - 0 ohm - REMOVE R301
R69 - 330K ohm - Change this to a 220K ohm

AF Unit, R64
Here is a close up of R64.
This resistor needs to be changed.


AF Unit, R301
Here is a Pic of the bottom of the AF Unit.
R301, Resistor/Jumper needs to be REMOVED.

AF Unit, C304, C188 & C48
This shows the location of R69.


Op Amp Mod:

This mod is NOT required to get a Flat Receiver Response.
It does not have to be performed.
But...
It sure makes the rig sound better.
It gives the Audio more depth, fullness, and ambiance. The Low Frequencies are smoother and more defined.
We're firm believers in the Audio differences between Op Amps.
We've changed allot of them out over the years and they have made a difference each time.
We found that this particular Op Amp had the best Fidelity.
You could try different one's of course to suit your tastes.

Installation is a little more difficult than the caps.
This is due to the IC's being of the SMD variety.
Just take your time, let the solder braid due the work.


Op Amp Parts
Op Amp Changes:
DigiKey - Part Numbers - Analog Digital
IC7 - NJM4558M changed to AD823AR
SMD IC
AD823AR-ND ---- AD823AR
IC8 - NJM4558M changed to AD823AR
SMD IC
AD823AR-ND ---- AD823AR

IC7 AD823AR Change out.
Here's a pic showing IC7 after being installed.
Be sure to align the Pin #1 DOT of the IC with the DOT marked on the board!!
The IC will be destroyed if you install it backwards.


IC8 AD823AR Change out.
This is a pic showing IC8 after being soldered onto the board.
Be sure to align the Pin #1 DOT of the IC with the DOT marked on the board!!
The IC will be destroyed if you install it backwards.


AF Unit Re-Installation

OK...
Before you attempt to re-install the AF Unit, take the time to look over the board extremely well.
Be sure all the Flux from your soldering is cleaned up.
Look for any accidental solder bridges that might have happened while you were soldering.
Be sure all the cut leads from the installed components are not "stuck" on the board anywhere.
Give it a good inspection.

AF Unit Installation:
It is basically just the opposite of the removal.
We found it's best to install the screws first before the Cable Connectors and Ribbon cables are reattached.
Use the pictures you took of it, or the labeled connectors to aid in reinstallation.
To install the Cable Connectors, again, it takes a gentle but firm touch.
Line up the connector and gently push down on it until it snaps into place.
Do this cautiously, because if you push too hard, you run the risk of cracking the PC Board.
The Ribbon cable connectors have a quick release on them.
Be sure the ledge on the top of the connector is lifted up.
Insert the ribbon cable, then push the ledge down and bottom it out.


NOTE:
We would suggest that you re-install the covers and try the rig out now, before any other modifications.
Do this after each board is modified. This will help you isolate any problems that you might have.
If you modify all the boards at the same time and then have problems it will be more difficult to troubleshoot and fix!



Congratulations!!

You're now a proud owner of a Totally Violated AF Unit!!
There are Kenwood Purists that would burn you at the stake!
You have Defiled Kenwood's most Prized!!

Ehhhh....they'll get over it.


Click here to Return to the Top of this Page.

Click here to Return to the TS-950SDX Receiver Mods Page.

Click here to Return to the TS-950SDX Voodoo Mods Page.

Click here to Return to the Home Page.


"Voodoo-LABS TS-950sdx AF Unit Mod" page designed by the VOODOO GURU

Valid HTML 4.01 Transitional
